Eastover Barn Siding Replacement & Exterior Painting | Fayetteville NC

Upper barn siding panels removed showing exposed wall stud framing in Eastover NC

Phase 1 • Carpentry Demolition

Stripping Curled Panels & Stud Inspection

Years of direct morning-to-midday sun exposure and driving rain had caused the upper layers of the vertical siding to delaminate and curl along the bottom edges. Screwing curled wood back down or caulking over lifted edges traps moisture in the core. Lasting weatherproofing requires removing compromised sheets back to solid framing.

Clean Panel Removal: We tore off the failing center and upper panels back to bare framing to inspect the interior wall studs and verify solid structural condition.
Framing Verification: The underlying framing studs were verified in solid shape with zero moisture damage before hanging new panels.
Georgia-Pacific Plytanium T1-11: Installed heavy-duty Plytanium T1-11 exterior plywood panels with precision shiplap edges to lock out water infiltration along vertical panel seams.

New Plytanium T1-11 panels installed on upper barn elevation before window setting

Phase 2 • Framing & Window Upgrades

Reframing Headers & Vinyl Window Installs

The original single-pane wood utility windows had dry-rotted at the sills and muntins. Rather than patching soft wood, we stripped the old units to rebuild solid rough openings and stop future water tracking.

Header & Rough Opening Reframing: We rebuilt the rough frames, leveled the sills, and framed new structural headers above each window opening.
Single-Hung Vinyl Units: Installed energy-efficient, low-maintenance single-hung vinyl utility windows fastened square into framing.
Full Casing & Groove Caulking: Built clean exterior 1x casing trim around every window unit, caulking tightly against the new T1-11 panels and sealing between panel grooves to prevent wind-driven leaks.

Airless paint sprayer setup coating Eastover barn in Sherwin-Williams Flower Pot

Phase 3 • Protective Coatings

Airless Spray, Back-Roll & SuperPaint "Flower Pot"

T1-11 siding has rough-sawn grain and vertical grooved channels that will fail prematurely if paint is only misted onto the surface. We prepped the elevation and applied a heavy-build exterior acrylic coating system designed to withstand extreme UV exposure.

Sherwin-Williams SW 6335 Flower Pot (SuperPaint Satin) Body & Gables: Flower Pot Satin | Window Casings, Rake Boards & Fascia: Exterior White

Airless Spray & Back-Rolling: Utilizing a commercial airless rig, we sprayed and immediately back-rolled the coating to force primer and paint deep into the vertical shiplap grooves and rough wood texture.
SuperPaint Flower Pot Satin: Coated the entire T1-11 body across all elevations in rich Sherwin-Williams Flower Pot satin. SuperPaint's resin expands and contracts with summer heat to resist future blistering.
Full Fascia & Trim Repaint: Hand-cut the retrimmed window casings, corner boards, rake boards, and the full perimeter roofline fascia in crisp exterior white for sharp architectural contrast.

Jobsite Progression & Full Elevation Views

Documented jobsite records showing tear-out, plywood installation, spray application, and completed elevations.

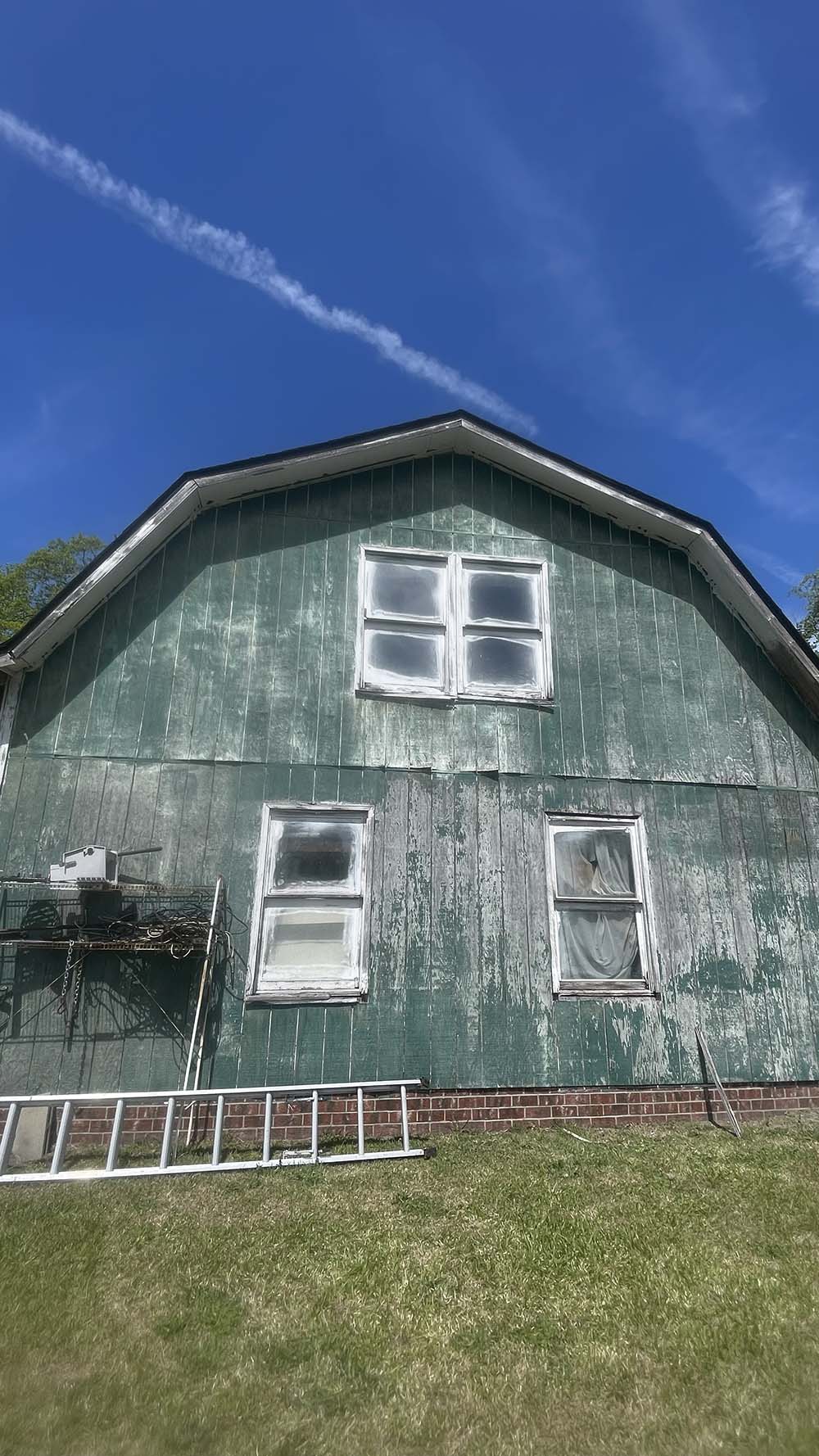

Original weathered green barn siding with curled panels and rotted windows

Initial Condition

Weathered Green Elevation

Original weathered green T1-11 panels showing delamination, curling bottom edges, and failing window sills.

Middle section of barn siding stripped showing clean vertical studs

Carpentry Demo

Stud Cavity Inspection

Upper center siding panels stripped back to sound wall framing studs prior to panel hanging.

New Plytanium T1-11 sheets fastened to the upper barn framing

Siding Install

Plytanium T1-11 Hung

New continuous plywood panels hung flush and fastened with exterior ring-shank nails.

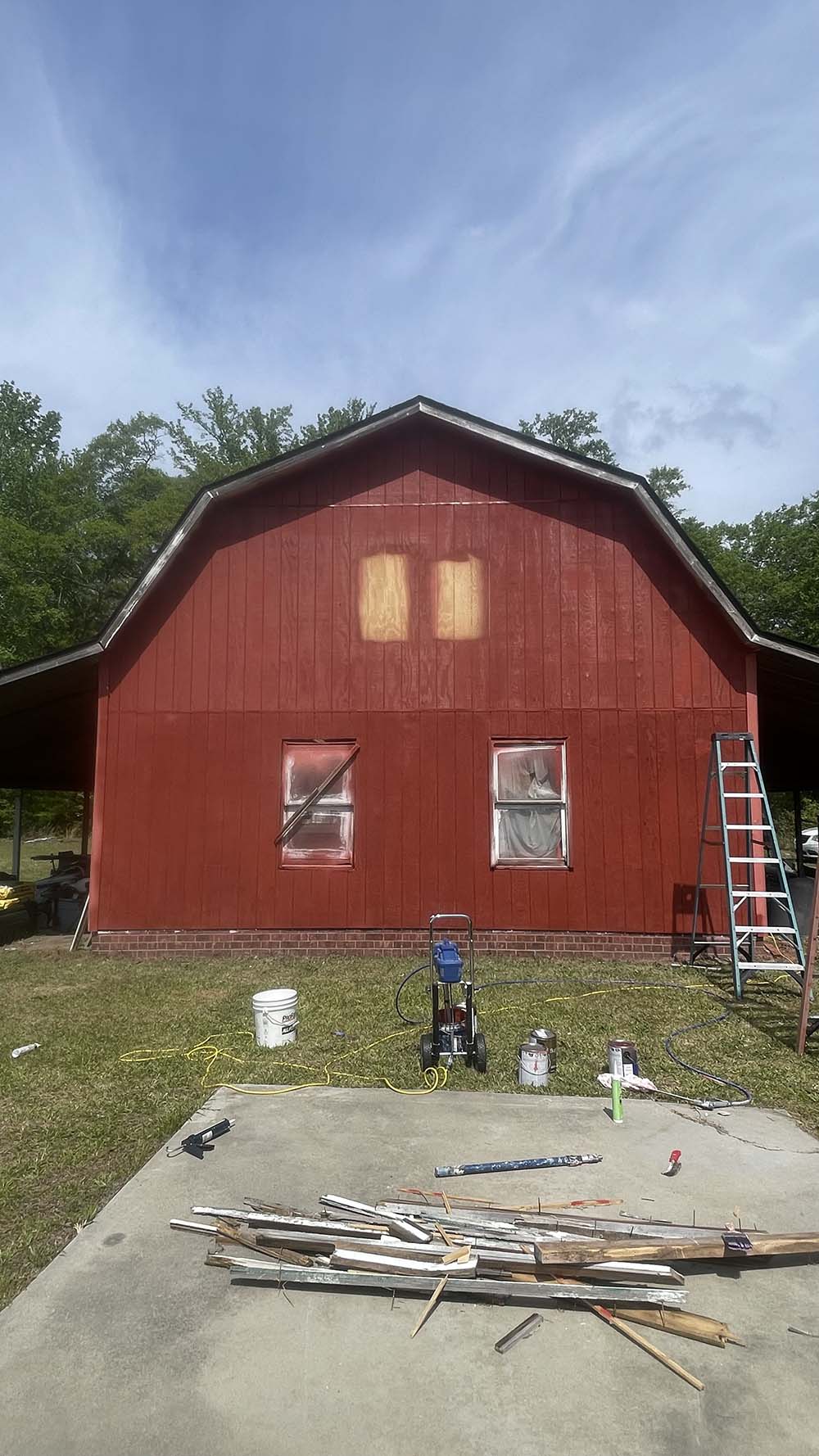

Airless spray rig and masked windows during Flower Pot paint application

Spray Application

Back-Rolling Flower Pot

Airless spraying and back-rolling to push acrylic coating deep into vertical panel channels.

Front double garage door elevation before prep showing heavy oxidation and mildew

Front Elevation Before

Chalky Garage Elevation

Original white elevation with oxidized paint film, mildew accumulation, and weathered upper windows.

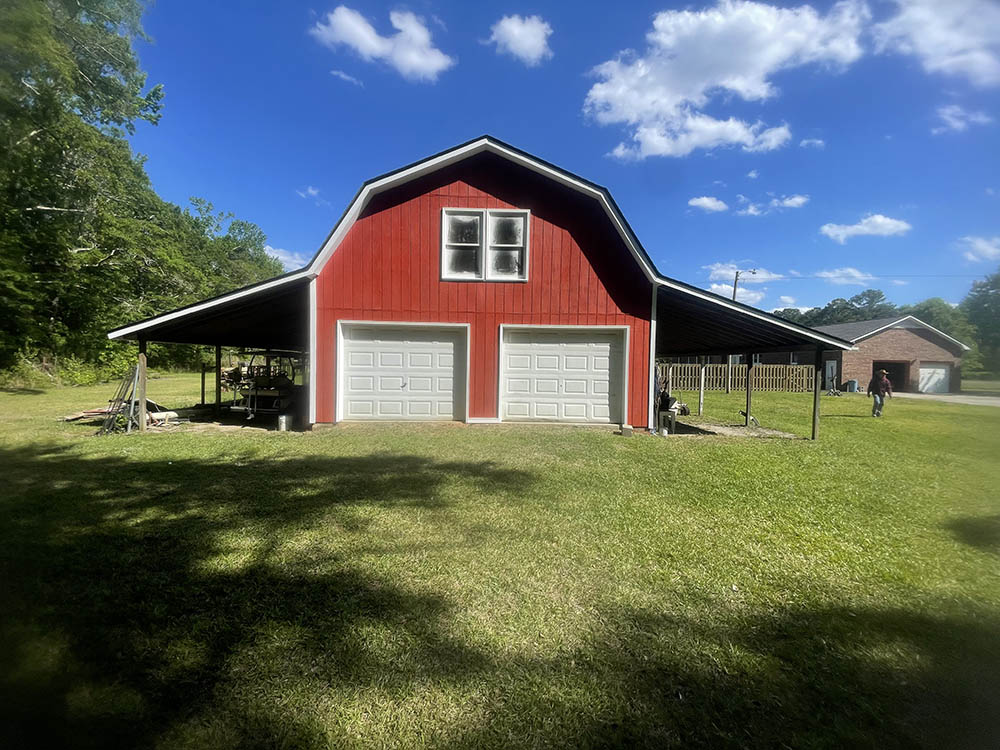

Completed double garage door barn elevation in Flower Pot with clean white trim

Front Elevation After

Restored Garage Elevation

Finished front view showing Flower Pot satin siding, coated garage door surrounds, and white trim outlines.

Completed back elevation of Eastover barn showing new vinyl windows and red siding

Completed Elevation

Finished Siding & Windows

New vinyl utility windows set, custom casings caulked tight, and full fascia painted in white.

Project Specifications Summary

Jobsite specifications, carpentry materials, and coating systems utilized during the Eastover barn restoration.

Structure & Exposure

Neighborhood: Eastover, NC (Eastern Cumberland County).
Structure: Detached 2-story gambrel-roof barn / workshop with side lean-tos.
Exposure: High UV exposure and thermal stress on southeast-facing walls.
Initial Issues: Delaminating siding, curled panel edges, dry-rotted wood window sills.

Carpentry & Windows

Siding Material: Georgia-Pacific Plytanium T1-11 Plywood (Shiplap Edge).
Window Units: Low-maintenance single-hung vinyl utility windows.
Rough Carpentry: Reframed rough openings and new structural headers.
Sealing: Exterior 1x casing caulked tight to panels and between grooves.

Coating Specifications

Application: High-pressure airless spray application followed by back-rolling.
Body Coating: Sherwin-Williams SuperPaint Exterior Acrylic (Satin).
Body Color: SW 6335 Flower Pot.
Trim & Fascia: Exterior Satin White (Window Casings, Corners & Full Roofline Fascia).

Barn Siding Replacement, Windows & SuperPaint Finish
