Eastover Fascia & Soffit Wood Rot Repair | Fayetteville NC

Rotted fascia and soffit stripped open showing sound internal rafters on Eastover home

Phase 1 • Surgical Demolition

Tearing Out Decay Down to Clean Framing

In mature Eastover neighborhoods, pine straw and heavy oak leaves regularly dam gutter troughs during seasonal downpours. When gutters back up, water spills backward over the sub-fascia, trapping moisture against the wood and rotting the soffit panels from the inside out. Merely spreading filler over soft boards or capping rotted wood with aluminum traps fungal decay against structural rafters.

Clean Framing Cut-Outs: We removed deteriorated fascia boards and waterlogged soffits cleanly back to the center of sound, healthy rafter tails.
Substrate Verification: The internal structural rafter ends were inspected directly, confirming that moisture intrusion was confined to the perimeter boards.
Sub-Fascia Reinforcement: Solid lumber backing was secured along the exposed overhang, establishing a level nailing plane for replacement trim boards.

Custom triangular plywood soffit return box and primed white fascia installed

Phase 2 • Architectural Carpentry

Custom Plywood Returns & Fastener Sealing

Roof overhang corners and gable rake transitions require custom-fitted carpentry to maintain weather-tight seals. Where the porch eave meets the rake angle under the satellite mount, standard off-the-shelf boards do not fit flush.

Custom Return Boxes: We measured and cut custom exterior-grade plywood return boxes, scribing the triangular angles tight against the rake framing.
Exterior Primed Wood Trim: Installed new exterior primed fascia boards along the gutter line, fastening flush with galvanized exterior ring-shank nails.
Countersunk Fastener Filling: All nail heads and countersunk screw locations were filled with exterior wood filler and spot-primed to prevent water from wicking into fastener points.
Elastomeric Seam Caulking: Applied high-flex exterior caulk along all butt joints, mitered corner seams, and soffit-to-frieze transitions.

Freshly painted white soffit and frieze board meeting the brick exterior wall

Phase 3 • Protective Coatings

Full Roofline Painting & Porch Refresh

Spot-painting a three-foot patch on an eave always flashes under sunlight, leaving noticeable sheen differences where old paint meets new. Because our crew manages both the structural carpentry and the finish painting, we coat the entire architectural line.

Sherwin-Williams SuperPaint Exterior Acrylic (Gloss White) Fascia, Soffits, Rake Boards, Porch Columns & Handrails

PrimeRx Peel Bonding Barrier: Scraped edges and adjacent weathered trim received Sherwin-Williams PrimeRx to lock down old paint margins before topcoating.
End-to-End Paint Blending: We rolled and brushed the entire roofline run continuously with Sherwin-Williams SuperPaint Exterior Acrylic in crisp Gloss White, eliminating break lines.
Porch Columns & Railings: Coated the front porch support posts and railings in matching SuperPaint Gloss White, establishing uniform curb appeal against the brick and stone veneer.

Jobsite Progression & Elevation Walkthrough

Recorded field photos detailing tear-out, custom plywood boxes, and completed rooflines.

Rotted porch eave and fascia stripped open showing exposed roof rafters

Carpentry Demo

Rotted Eave Tear-Out

Decayed fascia boards and soft soffit panels cleared cleanly back to sound framing.

Custom Carpentry

Plywood Soffit Box Return

Exterior-grade plywood return box scribed tight to rake framing and primed fascia secured.

Freshly painted white soffit and frieze board tight against brick exterior wall

Finish Pass

Frieze & Soffit Line

Continuous paint pass sealing under-eave panels and frieze boards against the brick veneer.

Completed straight white fascia and soffits along brick home roofline

Full Elevation

Straight Fascia Alignment

Full side view showing clean, rot-free white fascia and soffits integrated tight to gutters.

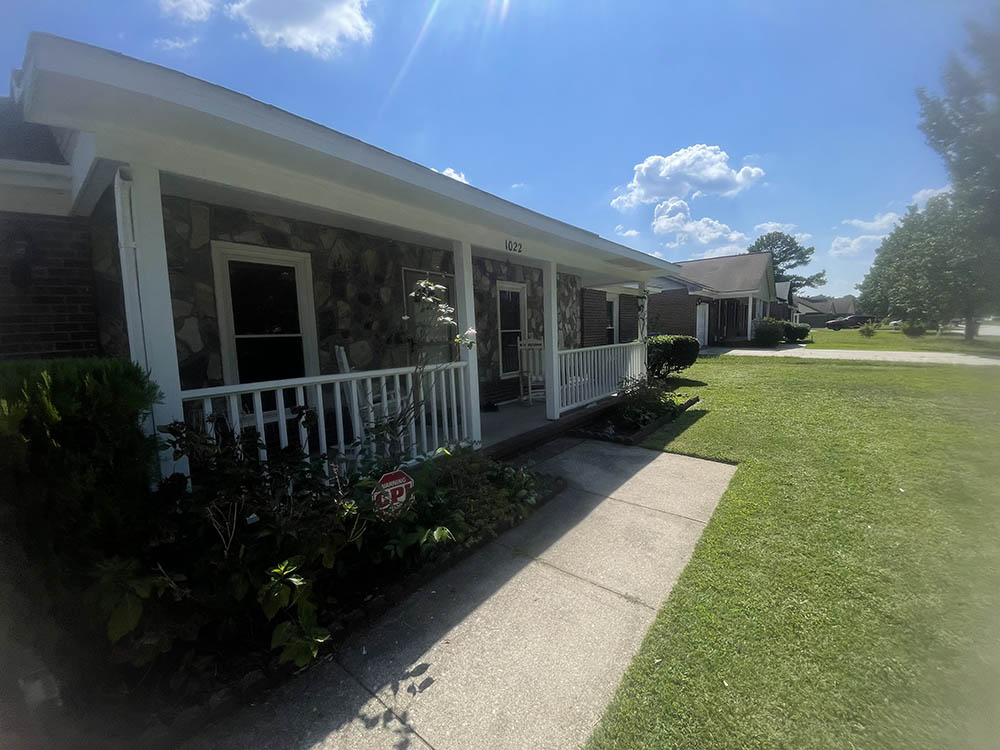

Front lawn view of completed porch roofline, white handrails, and stone accent facade

Completed Front View

Porch Roofline & Railings

Wide front view showing straight roofline transitions, stone accents, and freshly coated railings.

Project Specifications Summary

Jobsite specifications, carpentry materials, and coating systems utilized during the Eastover eave restoration.

Location & Damage

Neighborhood: Eastover / Cedar Falls Corridor, NC.
Root Cause: Gutter overflow and pine straw moisture retention.
Initial Issues: Waterlogged fascia boards, spongy soffit panels, rafter exposure.
Approach: Surgical wood rot tear-out, framing check, and end-to-end paint blending.

Carpentry & Materials

Fascia Boards: Exterior primed wood trim boards fastened with galvanized ring-shanks.
Soffit Returns: Custom-cut exterior-rated plywood triangular return boxes.
Fastener Protocol: Countersunk holes filled with exterior wood filler and spot-primed.
Seam Sealing: Elastomeric exterior joint sealant along all trim and frieze butt joints.

Coating Specifications

Primer System: Sherwin-Williams PrimeRx Peel Bonding Primer on scraped and bare wood.
Topcoat: Sherwin-Williams SuperPaint Exterior Acrylic (Gloss White).
Blend Range: Coated end-to-end across full eave, fascia, and rake runs to prevent flashing.
Accents: Porch support posts, handrails, and balusters coated in matching Gloss White.

Fascia Board, Soffit Rebuild & Roofline Painting
